Module page.codeberg.friedolyn.Friedolyn

Package page.codeberg.friedolyn.client.parser

Class Parser

java.lang.Object

page.codeberg.friedolyn.client.parser.Parser

public class Parser
extends Object

A class that provides methods to parse HTML documents from the University of Jena's Friedolin system.

Field Summary

Fields

Modifier and Type	Field	Description
private static String	FRIEDOLIN_CSS	The CSS style file that defines the design of the Friedolin website.
static final @NonNull Pattern	GET_GRADES_TABLE_NODE_ID_PATTERN	A regular expression pattern to extract the "nodeID" parameter, which is used in a Friedolin URL to identify the student's course.
static final @NonNull LinkedHashMap<String,String>	GET_GRADES_TABLE_PARAMETERS	The static parameters that are required to access the grades table of a student.

Constructor Summary

Constructors

Constructor	Description
Parser()

Method Summary

Modifier and Type	Method	Description
static @NonNull String	enrichHtmlWithCss(@NonNull String html)	Adds the FRIEDOLIN_CSS to the given HTML document.
private static @NonNull page.codeberg.friedolyn.client.parser.PersonalInformation	extractBasicPersonalInformationFromGradesTable(@NonNull org.jsoup.nodes.Document document)	Extracts the student's personal information from the given HTML document, which is expected to be the grades table.
private static @NonNull Optional<String[]>	extractDegreeAndCourse(@NonNull org.jsoup.nodes.Element table)	Extracts the degree and course from the given HTML table, if possible.
private static @NonNull DegreeAndCourseHeading	extractDegreeAndCourseHeading(@NonNull org.jsoup.nodes.Document document)	Searches the given document for the table that contains the heading for the first section of the grades table.
static @NonNull URL	extractGradesTableURL(@NonNull String html, @NonNull String academicDegree)	Extracts the URL to the grades table from the given HTML document, which is expected to be the response from the Friedolin server after accepting the obligation of use.
static @NonNull String	extractStudentClearname(@NonNull String html)	Extracts the student's clear name from the given HTML document, which is expected to be a response from the Friedolin server.
static @NonNull jakarta.mail.internet.InternetAddress	extractStudentEmailAddress(@NonNull String html)	Extracts the student's e-mail address from the given HTML document, which is expected to be a response from the Friedolin server.
static @NonNull String	extractUrlSecretParameter(@NonNull String html)	Extracts the secret URL parameter required for certain Friedolin requests from the given HTML document.
private static boolean	isAccountHeading(@NonNull org.jsoup.nodes.Element table)	Checks whether the given HTML table is a row that contains the heading of an account in the grades table.

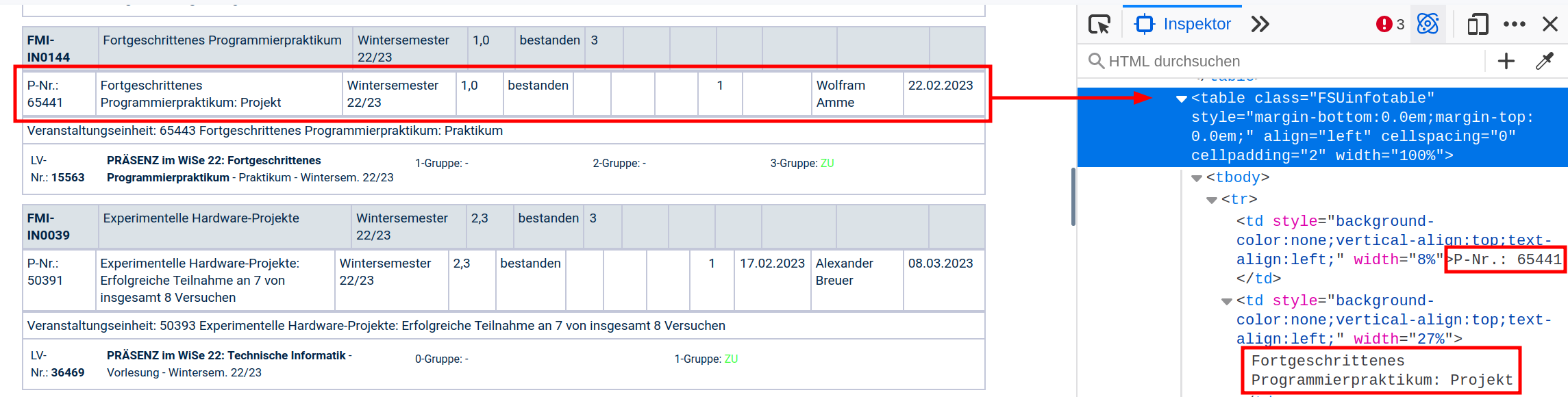

private static boolean	isExamTable(@NonNull org.jsoup.nodes.Element table)	Checks whether the given HTML table is an exam table in the grades table.

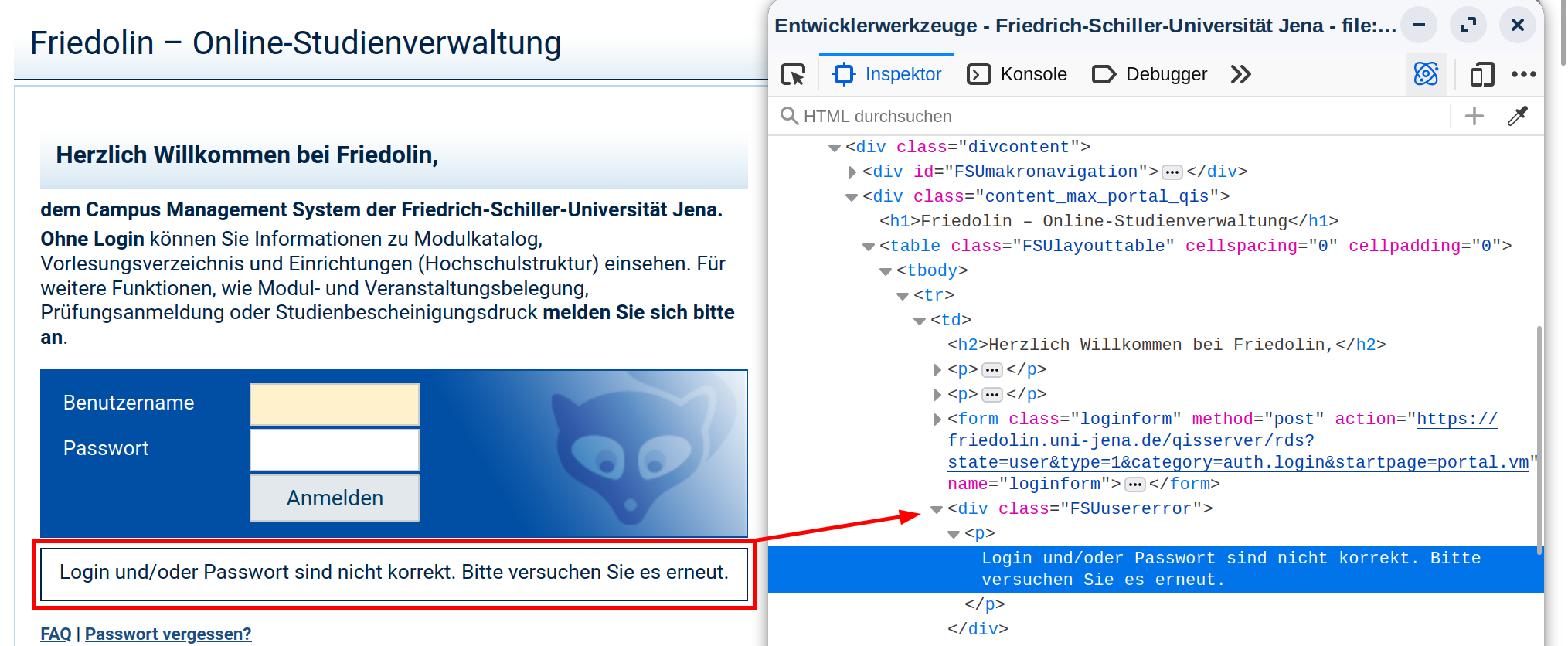

static boolean	isFailedLogin(@NonNull String html)	Checks if there's an error message indicating that the student's user name or password for Friedolin is incorrect.
private static @NonNull FuzzyBoolean	isModuleTable(@NonNull org.jsoup.nodes.Element table)	Checks whether the given HTML table might be a module table in the grades table.
private static boolean	isSubaccountHeading(@NonNull String account, @NonNull org.jsoup.nodes.Element table)	Checks whether the given HTML table is a row that contains the heading of a sub-account in the grades table.
private static boolean	isTableHeading(@NonNull org.jsoup.nodes.Element table)	Checks whether the given HTML table is the heading of the grades table, i.e.
static @NonNull String	normaliseDegree(@NonNull String degree)	Converts the given university degree from the notation used at the top of the grades table in the personal information table to the notation used in the course list.
private static @NonNull AccountHeading	parseAccountHeading(@NonNull org.jsoup.nodes.Element table)	Parses the given HTML table and extracts the info about the account heading.
private static int	parseEctsInAccountHeading(@NonNull org.jsoup.nodes.Element table)	Extracts the ECTS present in the given account heading.
private static int	parseEctsInAccountOrSubAccountHeading(@NonNull AccountHeadingKind accountHeadingKind, @NonNull org.jsoup.nodes.Element table)	Extracts the ECTS present in the given account or sub-account heading.
private static int	parseEctsInSubAccountHeading(@NonNull org.jsoup.nodes.Element table)	Extracts the ECTS present in the given sub-account heading.
static @NonNull String	parseExamNumber(@NonNull String examString)	Extracts the exam number from the given string, as found in the grades table:
private static @NonNull Exam	parseExamTable(@NonNull org.jsoup.nodes.Element table)	Extracts the information from the given exam table in the grades table.
static @NonNull GradesTable	parseGradesTable(@NonNull String html)	Extracts all available information from the grades table of the student: the student's name the student's birth date the student's home town the student's degree the student's Matrikelnummer the student's postal address the student's phone number the student's e-mail address the student's grades for all courses available
private static @NonNull Module	parseModuleTable(@NonNull org.jsoup.nodes.Element table)	Extracts the module information from the given HTML module table included in the grades table.
private static Exam.ExamStatus	parsePassedStatus(@NonNull String passedString)	Classifies the given exam-status string as a FuzzyBoolean value.
private static @NonNull SubaccountHeading	parseSubAccountHeading(@NonNull org.jsoup.nodes.Element table)	Extracts the information from the given sub-account heading in the grades table.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Details

FRIEDOLIN_CSS

private static String FRIEDOLIN_CSS

The CSS style file that defines the design of the Friedolin website. This is required to make the downloaded HTML documents look like they would in a browser. The CSS file is loaded from the resources of this project.

GET_GRADES_TABLE_PARAMETERS

@NonNull
public static final @NonNull LinkedHashMap<String,String> GET_GRADES_TABLE_PARAMETERS

The static parameters that are required to access the grades table of a student. In addition to these parameters, two dynamic parameters are required: "nodeID" and "asi". The "nodeID" is a unique identifier for the student's course and is extracted from the HTML of the Friedolin server's response. The "asi" is a secret parameter that is also extracted from the HTML of the Friedolin server's response.

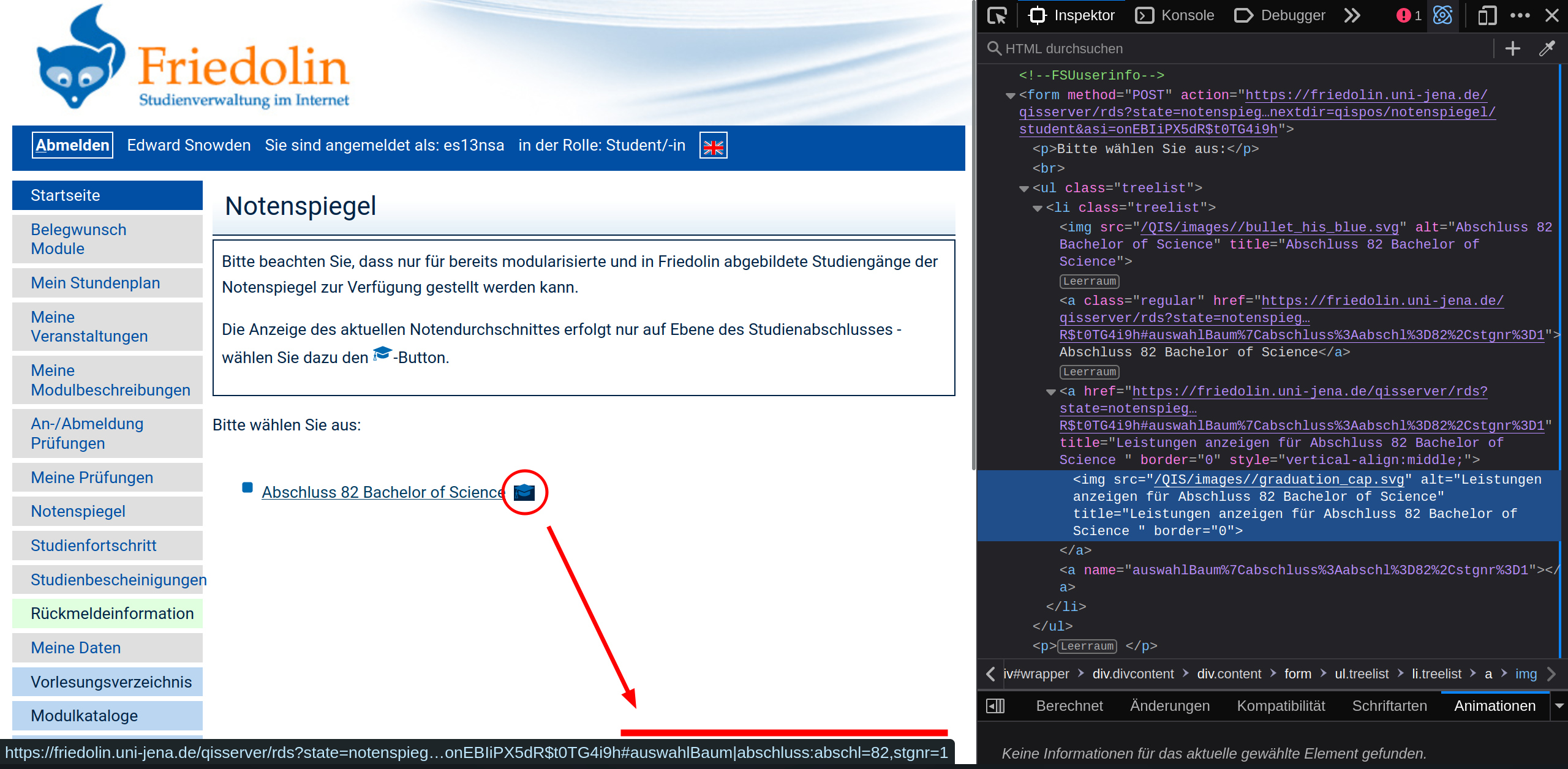

GET_GRADES_TABLE_NODE_ID_PATTERN

@NonNull
public static final @NonNull Pattern GET_GRADES_TABLE_NODE_ID_PATTERN

A regular expression pattern to extract the "nodeID" parameter, which is used in a Friedolin URL to identify the student's course.

Implementation Note:

Constructor Details

Parser

public Parser()

Method Details

extractUrlSecretParameter

@NonNull
public static @NonNull String extractUrlSecretParameter(@NonNull
 @NonNull String html)
                                                 throws IllegalArgumentException

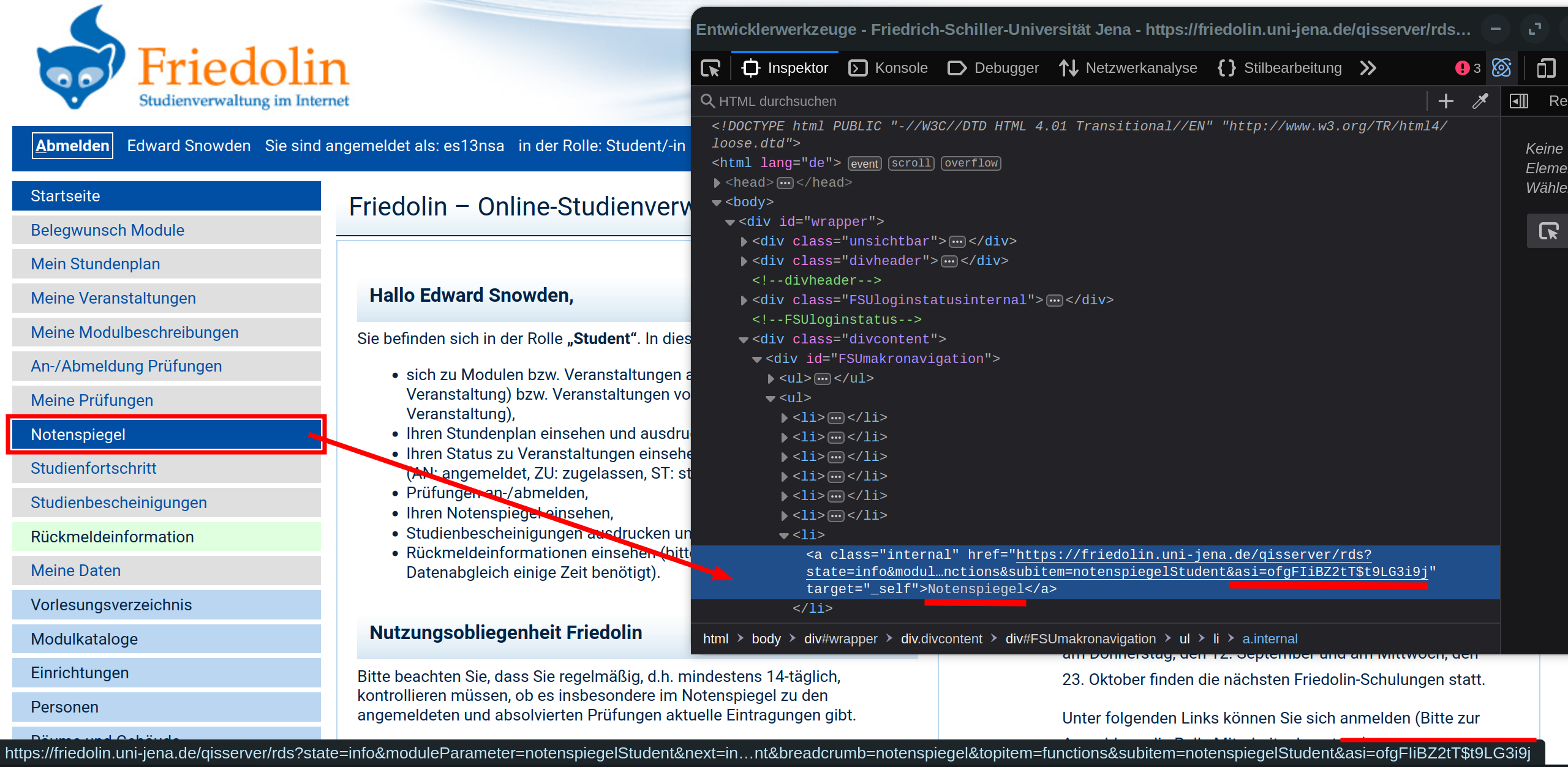

Extracts the secret URL parameter required for certain Friedolin requests from the given HTML document.

Parameters:

html - The HTML document to extract the secret from. Should be a response from the Friedolin server. It is required that the user was logged in when the response was generated, because otherwise the secret parameter won't be present anywhere.

Returns:

true if the secret was successfully extracted, false otherwise

Throws:

IllegalArgumentException

Implementation Note:

extractStudentEmailAddress

@NonNull
public static @NonNull jakarta.mail.internet.InternetAddress extractStudentEmailAddress(@NonNull
 @NonNull String html)
                                                                                 throws IllegalArgumentException

Extracts the student's e-mail address from the given HTML document, which is expected to be a response from the Friedolin server. It is also expected that the user was logged in when the response was generated, because otherwise the e-mail address won't be present anywhere.

Parameters:

html - The HTML document to extract the e-mail address from.

Returns:

The student's e-mail address as indicated in the University of Jena's Friedolin system.

Throws:

IllegalArgumentException - If the student's e-mail address could not be determined from the given HTML.

Implementation Note:

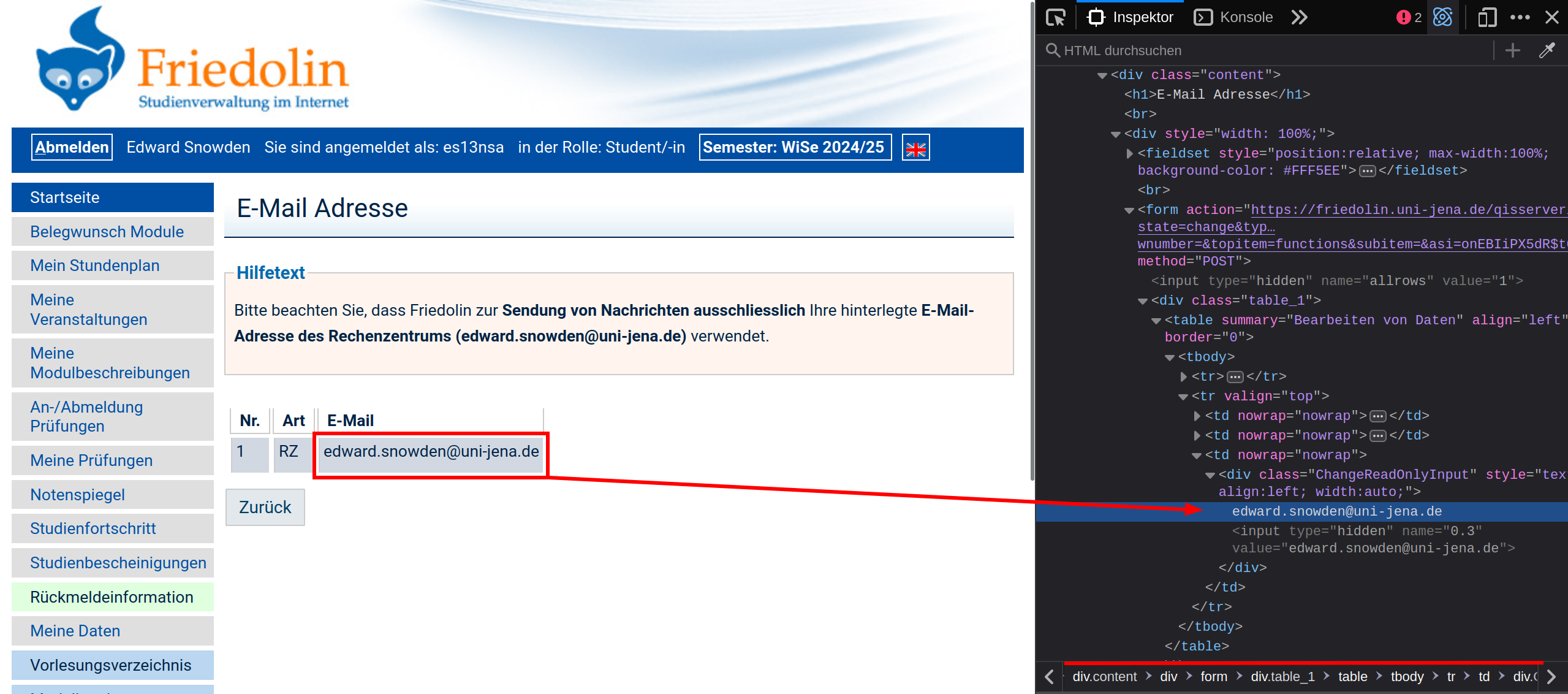

As Friedolin explains in the screenshot, the primary e-mail address is the one that is labelled with “RZ” which stands for “Rechenzentrum” and means “data center”.

extractStudentClearname

@NonNull
public static @NonNull String extractStudentClearname(@NonNull
 @NonNull String html)
                                               throws IllegalArgumentException

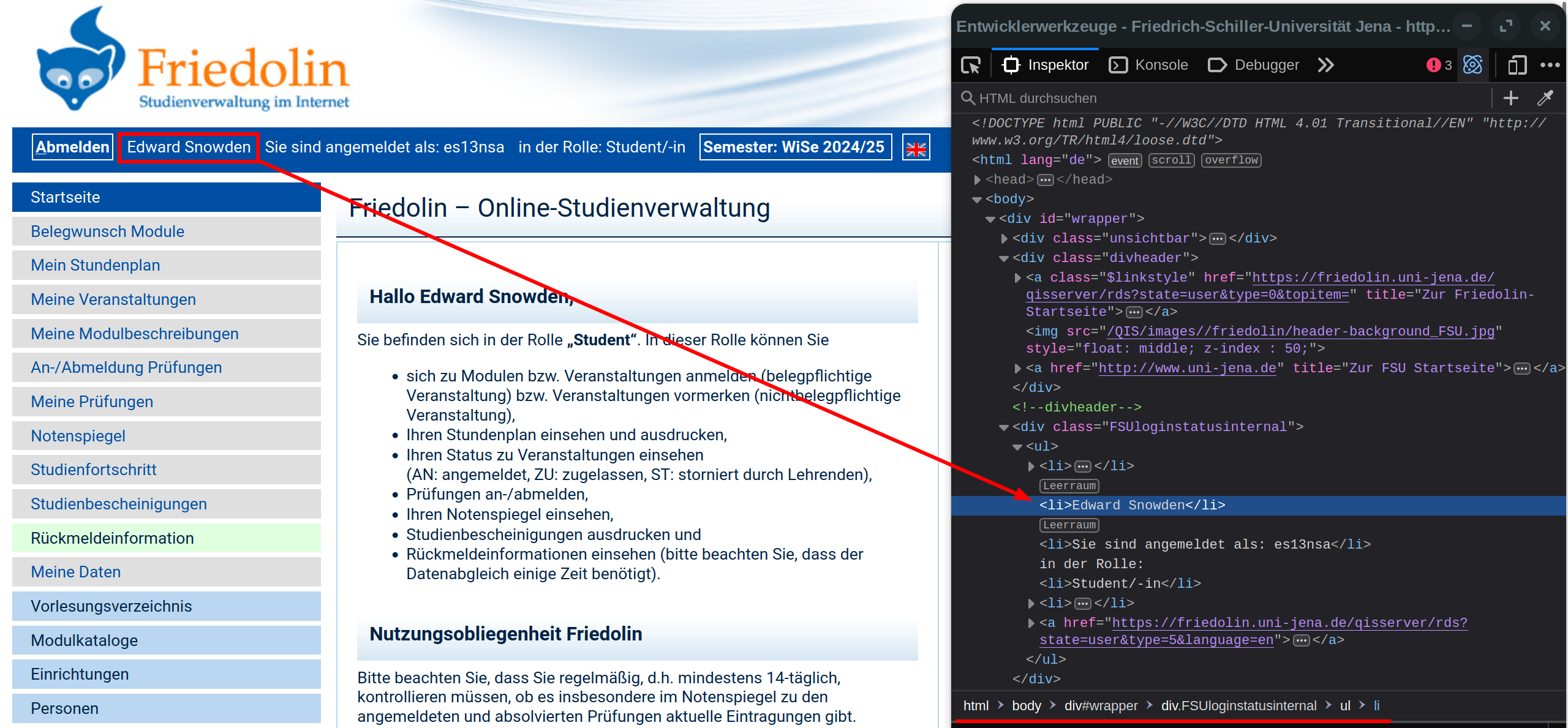

Extracts the student's clear name from the given HTML document, which is expected to be a response from the Friedolin server. It is also expected that the user was logged in when the response was generated, because otherwise the clear name won't be present anywhere.

Parameters:

html - The HTML document to extract the clear name from.

Returns:

The student's clear name as indicated in the University of Jena's Friedolin system.

Throws:

IllegalArgumentException - If the student's clear name could not be determined from the given HTML.

Implementation Note:

extractGradesTableURL

@NonNull
public static @NonNull URL extractGradesTableURL(@NonNull
 @NonNull String html,
 @NonNull
 @NonNull String academicDegree)
                                          throws IllegalArgumentException

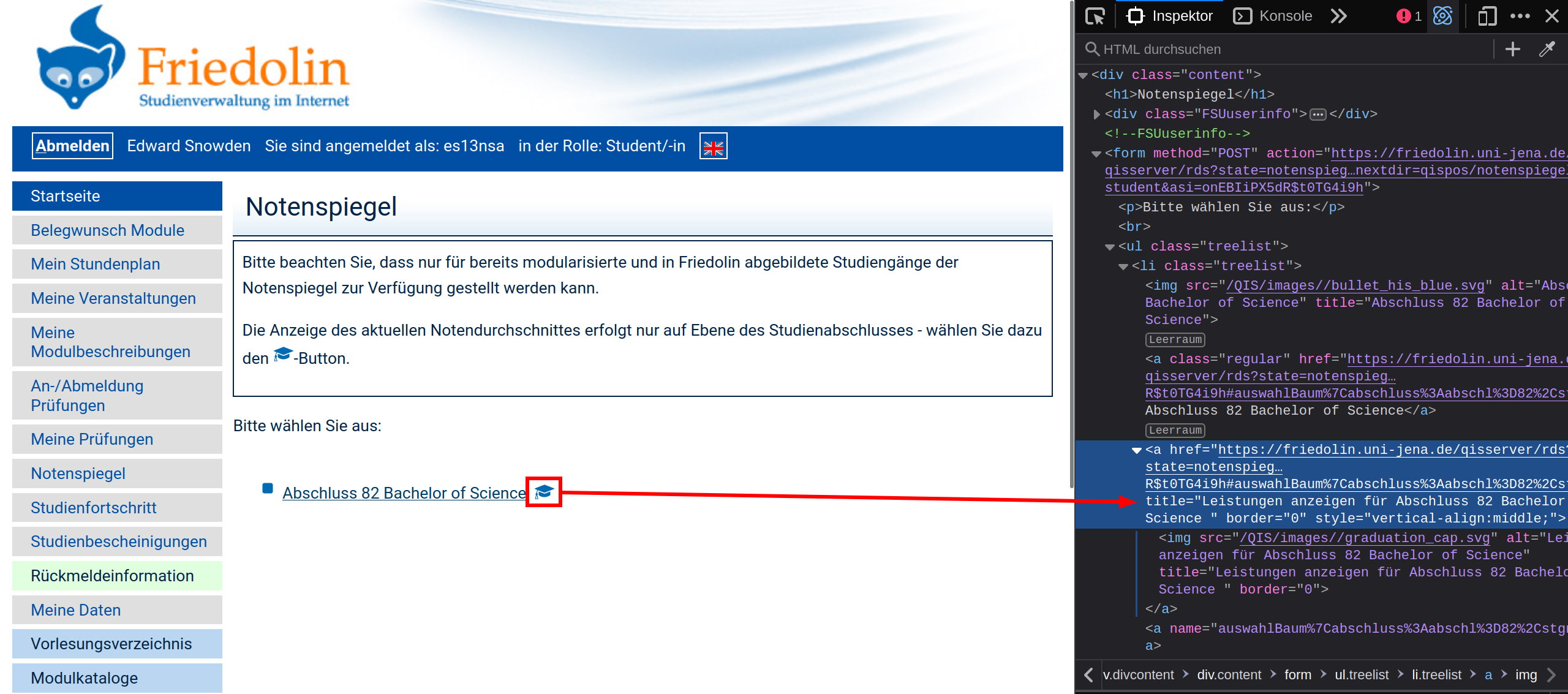

Extracts the URL to the grades table from the given HTML document, which is expected to be the response from the Friedolin server after accepting the obligation of use.

Parameters:

html - The HTML document to extract the URL from.

academicDegree - The academic degrees of the student, which is used to identify the correct grade table among multiple ones when the student is enrolled in multiple courses.

Returns:

The URL to the grades table belonging to the student's course.

Throws:

IllegalArgumentException - If the URL to the grades table could not be determined from the given HTML.

Implementation Note:

parseGradesTable

@NonNull
public static @NonNull GradesTable parseGradesTable(@NonNull
 @NonNull String html)
                                             throws IllegalArgumentException

Extracts all available information from the grades table of the student:

• the student's name
• the student's birth date
• the student's home town
• the student's degree
• the student's Matrikelnummer
• the student's postal address
• the student's phone number
• the student's e-mail address
• the student's grades for all courses available

Parameters:

html - The grades table. Should be the result from FriedolinClient.fetchGrades(String...)

Throws:

IllegalArgumentException - If any of the required information could not be extracted from the grades table.

extractBasicPersonalInformationFromGradesTable

@NonNull
private static @NonNull page.codeberg.friedolyn.client.parser.PersonalInformation extractBasicPersonalInformationFromGradesTable(@NonNull
 @NonNull org.jsoup.nodes.Document document)
                                                                                                                          throws IllegalArgumentException

Extracts the student's personal information from the given HTML document, which is expected to be the grades table.

Parameters:

document - The HTML document to extract the personal information from. Should be the result of FriedolinClient.fetchGrades(String...).

Returns:

The student's personal information, as indicated in the University of Jena's Friedolin system.

Throws:

IllegalArgumentException - If the given document does not contain the student's personal information in the expected format.

Implementation Note:

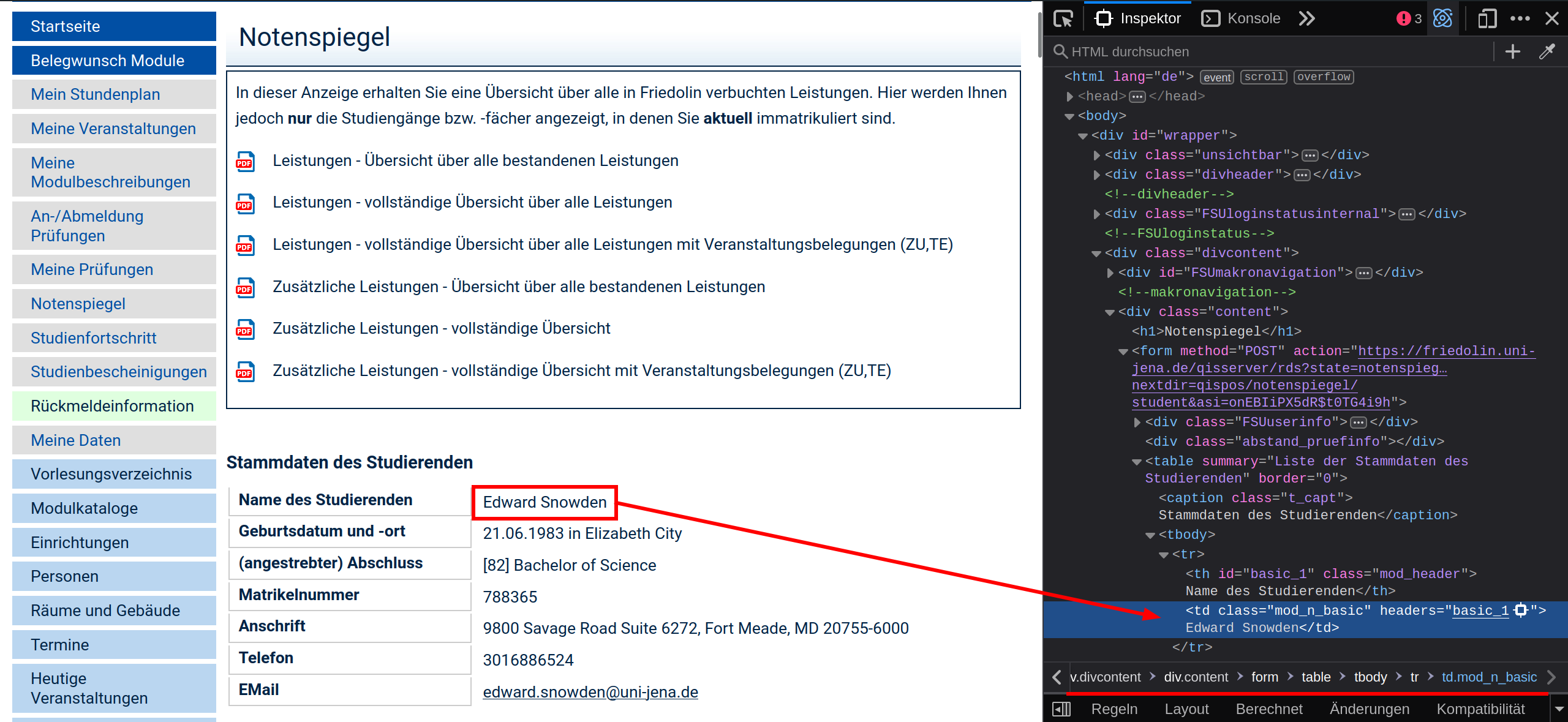

Stammdaten des Studierenden



Name des Studierenden

Edward Snowden




Geburtsdatum und -ort

21.06.1983 in Elizabeth City




(angestrebter) Abschluss

[82] Bachelor of Science




Matrikelnummer

788365




Anschrift

9800 Savage Road Suite 6272, Fort Meade, MD 20755-6000




Telefon

3016886524




EMail


             gedward.snowden@uni-jena.de





normaliseDegree

@NonNull
public static @NonNull String normaliseDegree(@NonNull
 @NonNull String degree)

Converts the given university degree from the notation used at the top of the grades table in the personal information table to the notation used in the course list. For example, it converts “[82] Bachelor of Science” to “Abschluss 82 Bachelor of Science”.

Parameters:

degree - The degree in the notation used in the personal information table.

Returns:

The degree in the notation used in the course list.

extractDegreeAndCourse

@NonNull
private static @NonNull Optional<String[]> extractDegreeAndCourse(@NonNull
 @NonNull org.jsoup.nodes.Element table)

Extracts the degree and course from the given HTML table, if possible. The HTML element is expected to be the heading for the next part of the grades table, which contains the grades for a specific degree and course.

Parameters:

table - The HTML table to extract the degree and course from.

Returns:

The first element of the array is the degree, the second element is the course. If the degree and course could not be extracted, an empty optional is returned.

Implementation Note:

extractDegreeAndCourseHeading

@NonNull
private static @NonNull DegreeAndCourseHeading extractDegreeAndCourseHeading(@NonNull
 @NonNull org.jsoup.nodes.Document document)
                                                                      throws IllegalArgumentException

Searches the given document for the table that contains the heading for the first section of the grades table. The heading is expected to include the degree and course of the student.

Parameters:

document - The document to search in. Should be the grades table returned by the Friedolin server.

Returns:

The degree and course extracted from the heading, along with the table that contains the heading.

Throws:

IllegalArgumentException - If the degree-and-course heading could not be extracted from the document.

Implementation Note:

See extractDegreeAndCourse(Element) for implementation details.

isTableHeading

private static boolean isTableHeading(@NonNull
 @NonNull org.jsoup.nodes.Element table)

Checks whether the given HTML table is the heading of the grades table, i.e. the table that contains the titles for the columns of all following tables (you could call it a “legend” like in a map).

Parameters:

table - The HTML table to check.

Returns:

true if the given table is the heading of the grades table, false otherwise.

isAccountHeading

private static boolean isAccountHeading(@NonNull
 @NonNull org.jsoup.nodes.Element table)

Checks whether the given HTML table is a row that contains the heading of an account in the grades table.

Parameters:

table - The HTML table from the grades table to check.

Returns:

true if the given table is an account heading in the grades table, false otherwise.

Implementation Note:

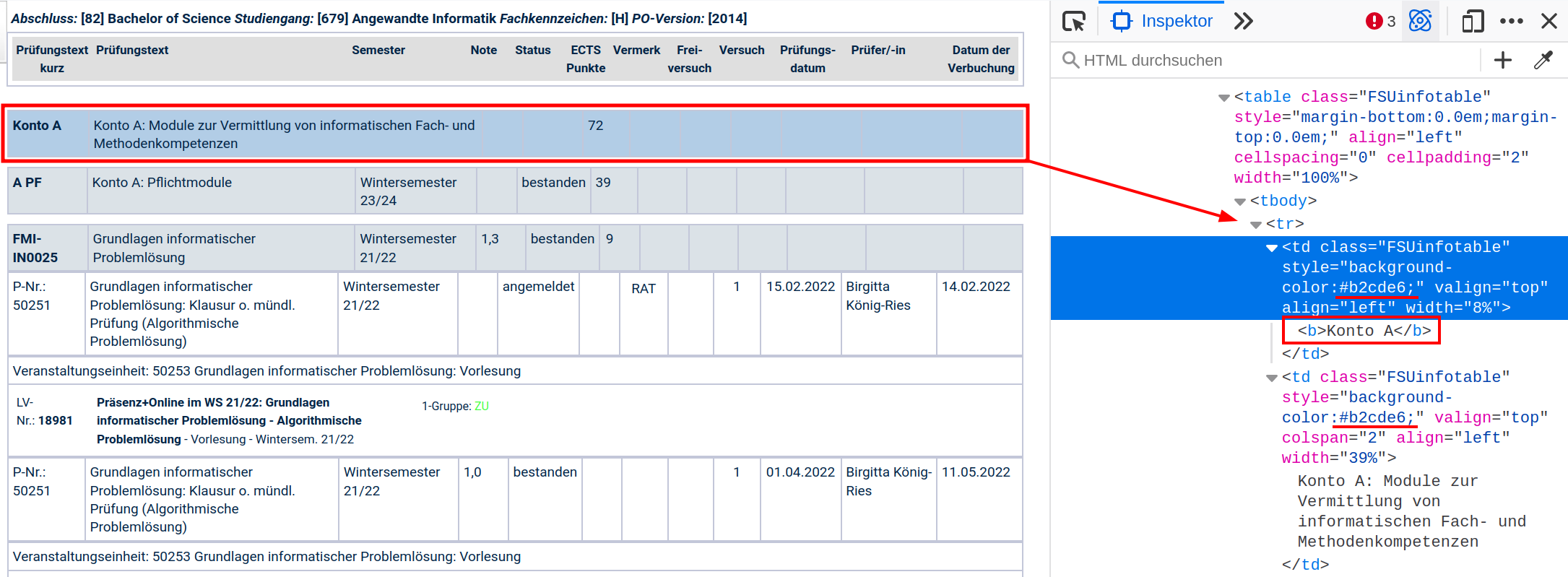

Accounts are distinguished from sub-accounts by the background colour of the cells in the row: For accounts, the background colour is darker (#b2cde6) than for sub-accounts (#dbe2e7).

isSubaccountHeading

private static boolean isSubaccountHeading(@NonNull
 @NonNull String account,
 @NonNull
 @NonNull org.jsoup.nodes.Element table)

Checks whether the given HTML table is a row that contains the heading of a sub-account in the grades table.

Parameters:

account - The account number of the account that the sub-account belongs to.

table - The HTML table (from the grades table) suspected to be a sub-account heading.

Returns:

true if the given table is a sub-account heading in the grades table, false otherwise.

Implementation Note:

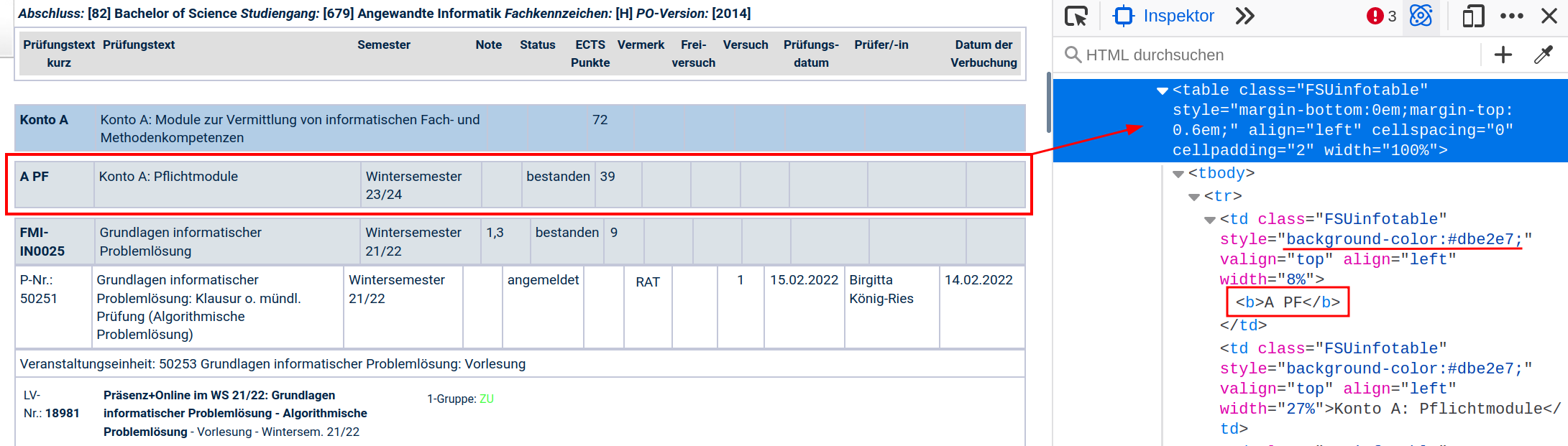

Sub-accounts are distinguished from accounts by the background colour of the cells in the row: For sub-accounts, the background colour is lighter (#dbe2e7) than for accounts (#b2cde6).

parseAccountHeading

@NonNull
private static @NonNull AccountHeading parseAccountHeading(@NonNull
 @NonNull org.jsoup.nodes.Element table)
                                                    throws IllegalArgumentException

Parses the given HTML table and extracts the info about the account heading.

Parameters:

table - The HTML table to parse. Should be an account heading in the grades table

Returns:

The account heading information.

Throws:

IllegalArgumentException - If the given table is not an account heading in the grades table.

Implementation Note:

parseEctsInAccountOrSubAccountHeading

private static int parseEctsInAccountOrSubAccountHeading(@NonNull
 @NonNull AccountHeadingKind accountHeadingKind,
 @NonNull
 @NonNull org.jsoup.nodes.Element table)
                                                  throws IllegalArgumentException

Extracts the ECTS present in the given account or sub-account heading.

Parameters:

accountHeadingKind - Whether the given table is an account or a sub-account heading.

table - The HTML table (account or sub-account heading) to extract the ECTS from.

Returns:

The ECTS number from the given account or sub-account heading.

Throws:

IllegalArgumentException - If no ECTS were found in the given account or sub-account heading.

Implementation Note:

The ECTS for accounts are in the fifth cell of the row, while the ECTS for sub-accounts are in the sixth cell of the row.

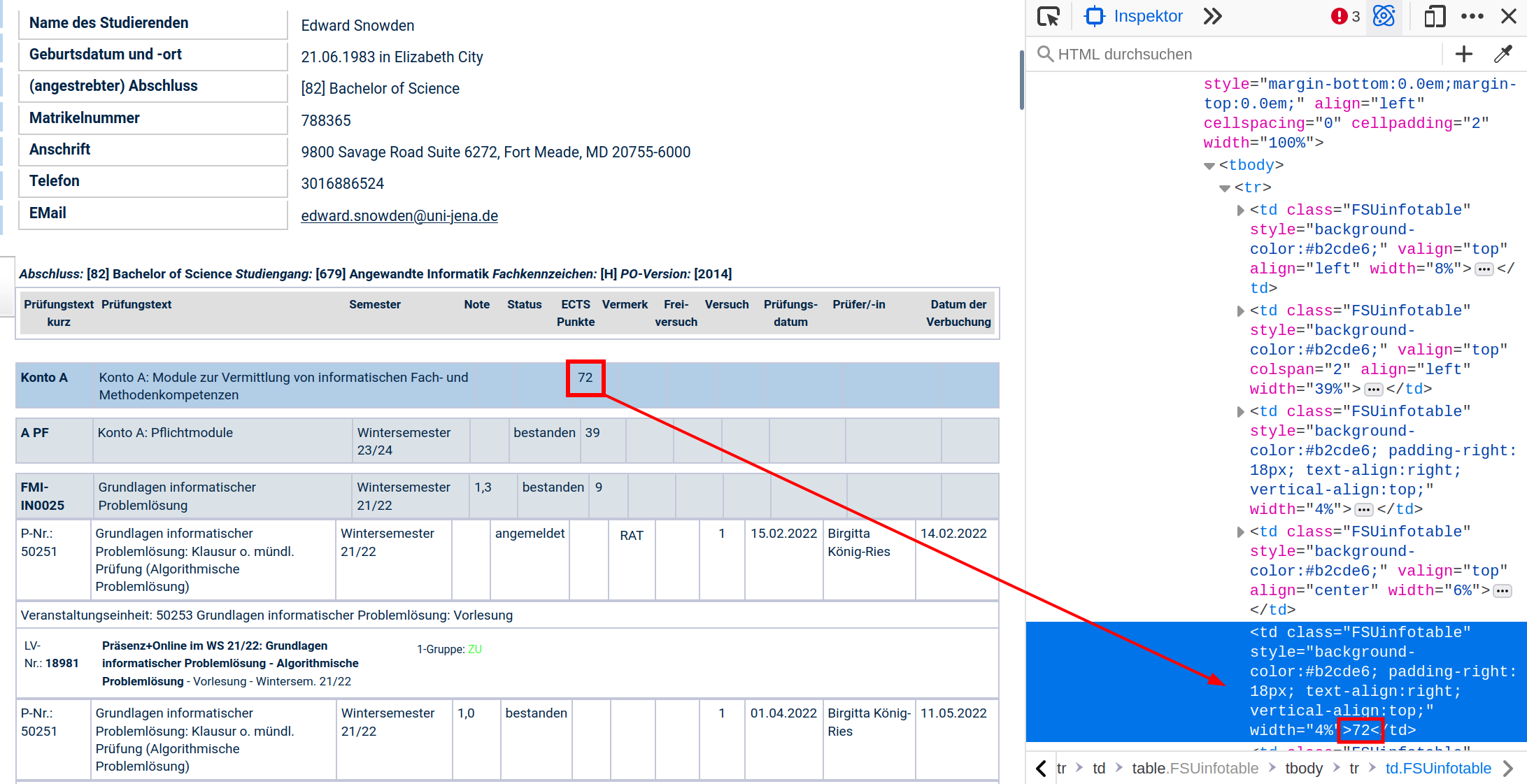

parseEctsInAccountHeading

private static int parseEctsInAccountHeading(@NonNull
 @NonNull org.jsoup.nodes.Element table)
                                      throws IllegalArgumentException

Extracts the ECTS present in the given account heading.

Parameters:

table - The HTML table (account heading) to extract the ECTS from.

Returns:

The ECTS number from the given account heading.

Throws:

IllegalArgumentException - If no ECTS were found in the given account heading.

Implementation Note:

The ECTS for accounts are in the fifth cell of the row.

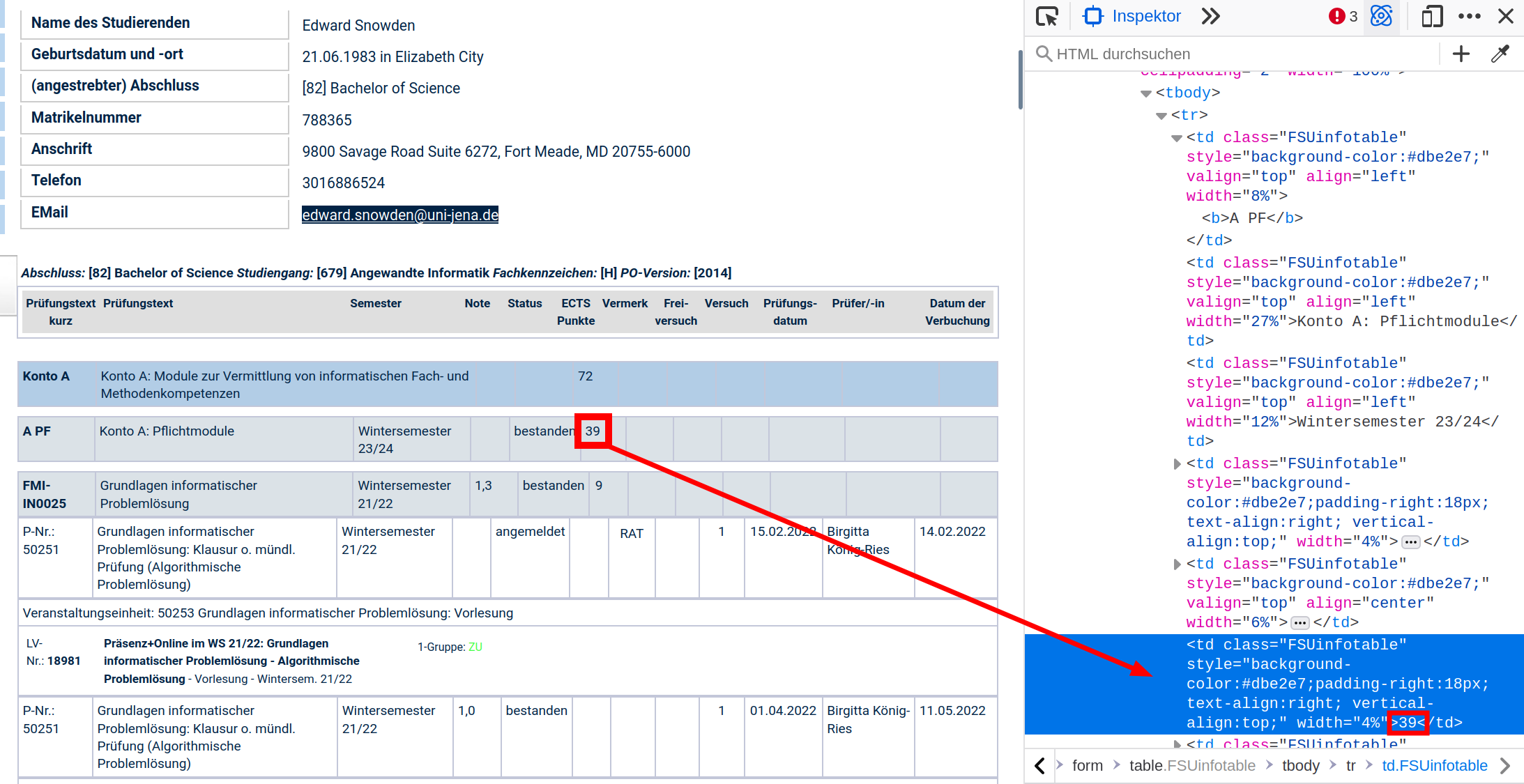

parseEctsInSubAccountHeading

private static int parseEctsInSubAccountHeading(@NonNull
 @NonNull org.jsoup.nodes.Element table)
                                         throws IllegalArgumentException

Extracts the ECTS present in the given sub-account heading.

Parameters:

table - The HTML table (sub-account heading) to extract the ECTS from.

Returns:

The ECTS number from the given sub-account heading.

Throws:

IllegalArgumentException - If no ECTS were found in the given sub-account heading.

Implementation Note:

The ECTS for sub-accounts are in the sixth cell of the row.

parseSubAccountHeading

@NonNull
private static @NonNull SubaccountHeading parseSubAccountHeading(@NonNull
 @NonNull org.jsoup.nodes.Element table)
                                                          throws IllegalArgumentException

Extracts the information from the given sub-account heading in the grades table.

Parameters:

table - The HTML table to extract the sub-account heading from.

Returns:

The sub-account heading information.

Throws:

IllegalArgumentException - If the given table is not a sub-account heading in the grades table.

Implementation Note:

Sub-accounts are distinguished from accounts by the background colour of the cells in the row: For sub-accounts, the background colour is lighter (#dbe2e7) than for accounts (#b2cde6).

isModuleTable

@NonNull
private static @NonNull FuzzyBoolean isModuleTable(@NonNull
 @NonNull org.jsoup.nodes.Element table)

Checks whether the given HTML table might be a module table in the grades table.

Parameters:

table - The HTML table to check.

Returns:

• FuzzyBoolean.FALSE if the given table is definitely not a module table
• FuzzyBoolean.MAYBE if the given table might be a module table
• FuzzyBoolean.TRUE: never, because module tables can't be recognised with certainty

See Also:

• parseModuleTable(Element)

parseModuleTable

@NonNull
private static @NonNull Module parseModuleTable(@NonNull
 @NonNull org.jsoup.nodes.Element table)
                                         throws IllegalArgumentException

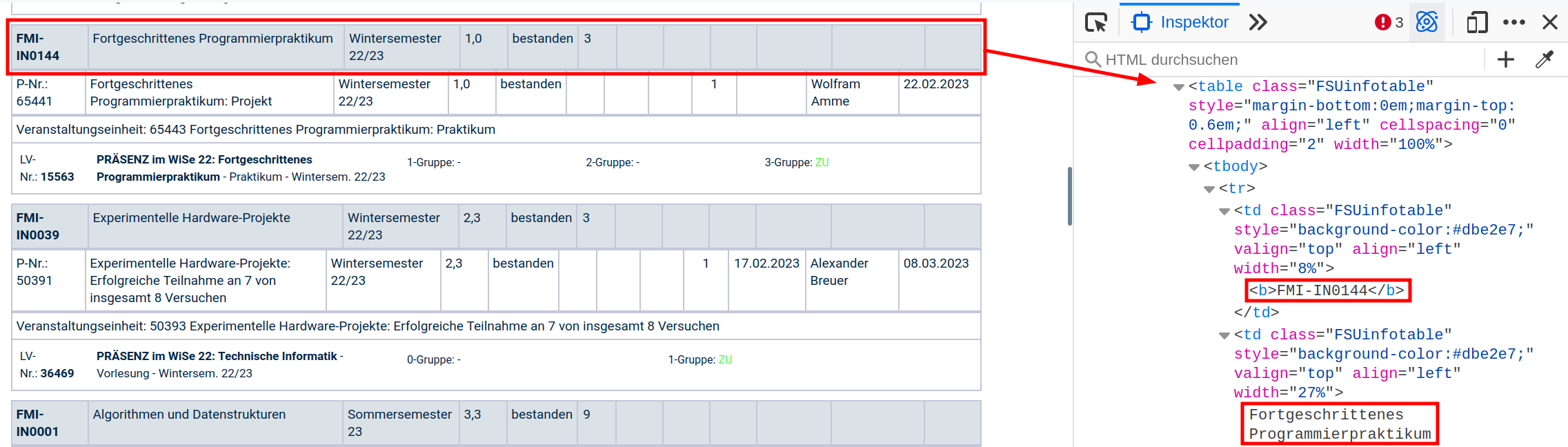

Extracts the module information from the given HTML module table included in the grades table.

Parameters:

table - The HTML table to extract the module information from. Must be from the grades table.

Returns:

1. the module code
2. the module title
3. the semester
4. the grade
5. the passed status
6. the ECTS

Throws:

IllegalArgumentException - If the given table is not a module table in the grades table.

See Also:

• isModuleTable(Element)

Implementation Note:

parsePassedStatus

@NonNull
private static Exam.ExamStatus parsePassedStatus(@NonNull
 @NonNull String passedString)
                                          throws IllegalArgumentException

Classifies the given exam-status string as a FuzzyBoolean value.

Parameters:

passedString - Whether the exam has been passed (bestanden), failed (nicht bestanden) or is pending (angemeldet).

Returns:

The Exam.ExamStatus value represented by the given string.

Throws:

IllegalArgumentException - If the given string is neither bestanden nor nicht bestanden nor angemeldet.

isExamTable

private static boolean isExamTable(@NonNull
 @NonNull org.jsoup.nodes.Element table)

Checks whether the given HTML table is an exam table in the grades table.

Parameters:

table - The HTML table to check.

Returns:

true if the given table is an exam table in the grades table, false otherwise.

See Also:

• parseExamTable(Element)

parseExamTable

@NonNull
private static @NonNull Exam parseExamTable(@NonNull
 @NonNull org.jsoup.nodes.Element table)
                                     throws IllegalArgumentException

Extracts the information from the given exam table in the grades table.

Parameters:

table - The HTML table to extract the exam information from. Must be from the grades table.

Returns:

The embedded exam information.

Throws:

IllegalArgumentException - If the given table is not an exam table in the grades table.

See Also:

• isExamTable(Element)

Implementation Note:







                   P-Nr.: 65441



                       Fortgeschrittenes Programmierpraktikum: Projekt



                       Wintersemester 22/23



                           1,0



                       bestanden

















                       1






                       Wolfram Amme



                       22.02.2023





parseExamNumber

@NonNull
public static @NonNull String parseExamNumber(@NonNull
 @NonNull String examString)
                                       throws IllegalArgumentException

Extracts the exam number from the given string, as found in the grades table:

Parameters:

examString - The exam-number string to parse. Must be in the format P-Nr.: 123456.

Returns:

The exam number extracted from the given string (e.g. 123456).

Throws:

IllegalArgumentException - If the exam number could not be extracted from the given string.

enrichHtmlWithCss

@NonNull
public static @NonNull String enrichHtmlWithCss(@NonNull
 @NonNull String html)
                                         throws IllegalArgumentException

Adds the FRIEDOLIN_CSS to the given HTML document. The CSS is added to the document by replacing the link element whose `href` attribute includes "/qisserver/pub/QISDesign_FSU.css" with a style element containing the CSS.

Parameters:

html - The HTML document to enrich with the CSS.

Returns:

The enriched HTML document.

Throws:

IllegalArgumentException - If the CSS link could not be found in the HTML document.

isFailedLogin

public static boolean isFailedLogin(@NonNull
 @NonNull String html)

Checks if there's an error message indicating that the student's user name or password for Friedolin is incorrect.

Parameters:

html - The Friedolin HTML response to check.

Returns:

true if the error message is present (login failed). false if no error message is present (this is not a guarantee that the login was successful).
